Input/output interface: 20A high current 2P wiring terminal
Instrument working voltage:
① Red Black wire independent power supply DC6~30V
② Shared power supply DC7-200V
Voltage measurement range: DC0-200V (separate power supply is required for voltages below 7V)
Current measurement range: 0.00A~20.00A
Power measurement range: 00.00~4000W
Capacity measurement range: 0~9999.99Ah
Electricity metering range: 0~9999.99Wh
Temperature measurement range: 0-99 ℃ (measurement feedback instrument temperature, does not support measuring external temperature)
Time measurement range: 0~999:59:59 (hour: minute: second)
Data Zeroing: Supported
Zeroing without load: supported
Voltage trimming: supported
Current fine tuning: supported
Percentage battery display: Supports voltage based reference based percentage battery (requires manual setting of full and low battery voltages)

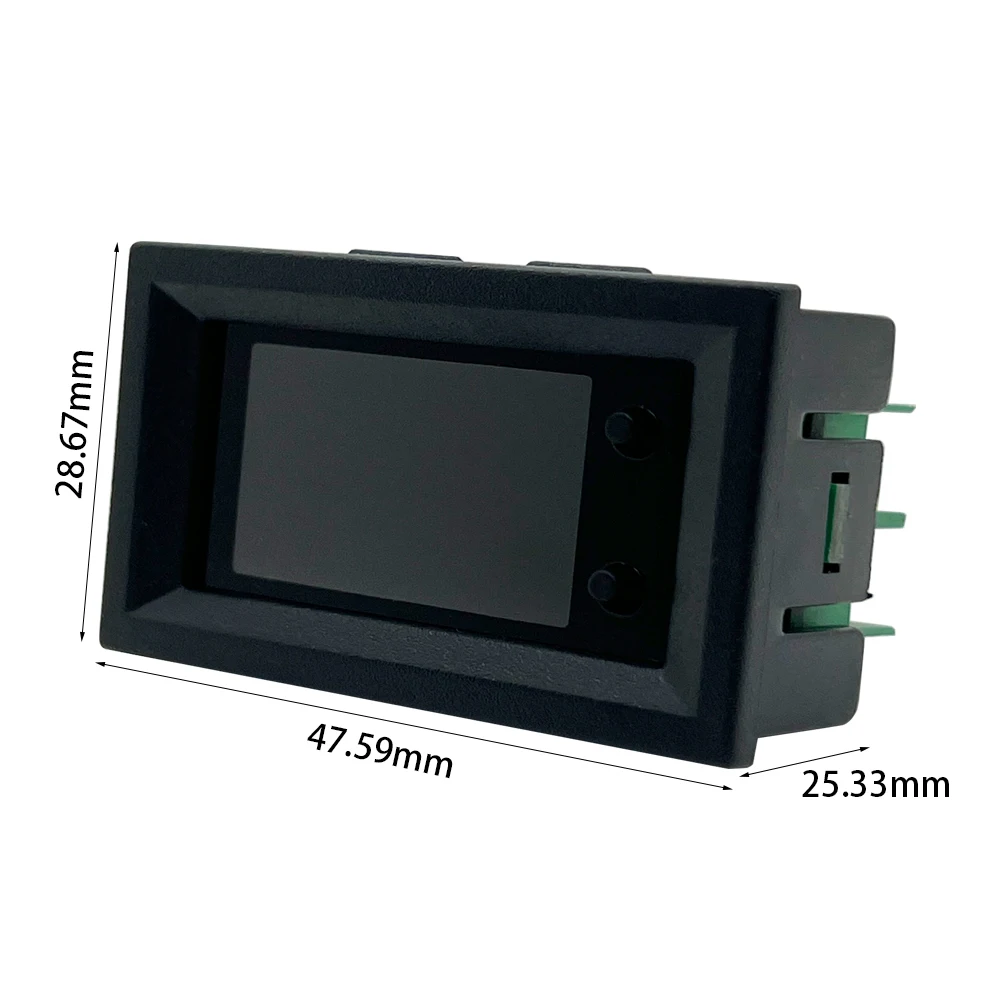

Product size: 47.59×28.67×25.33mm

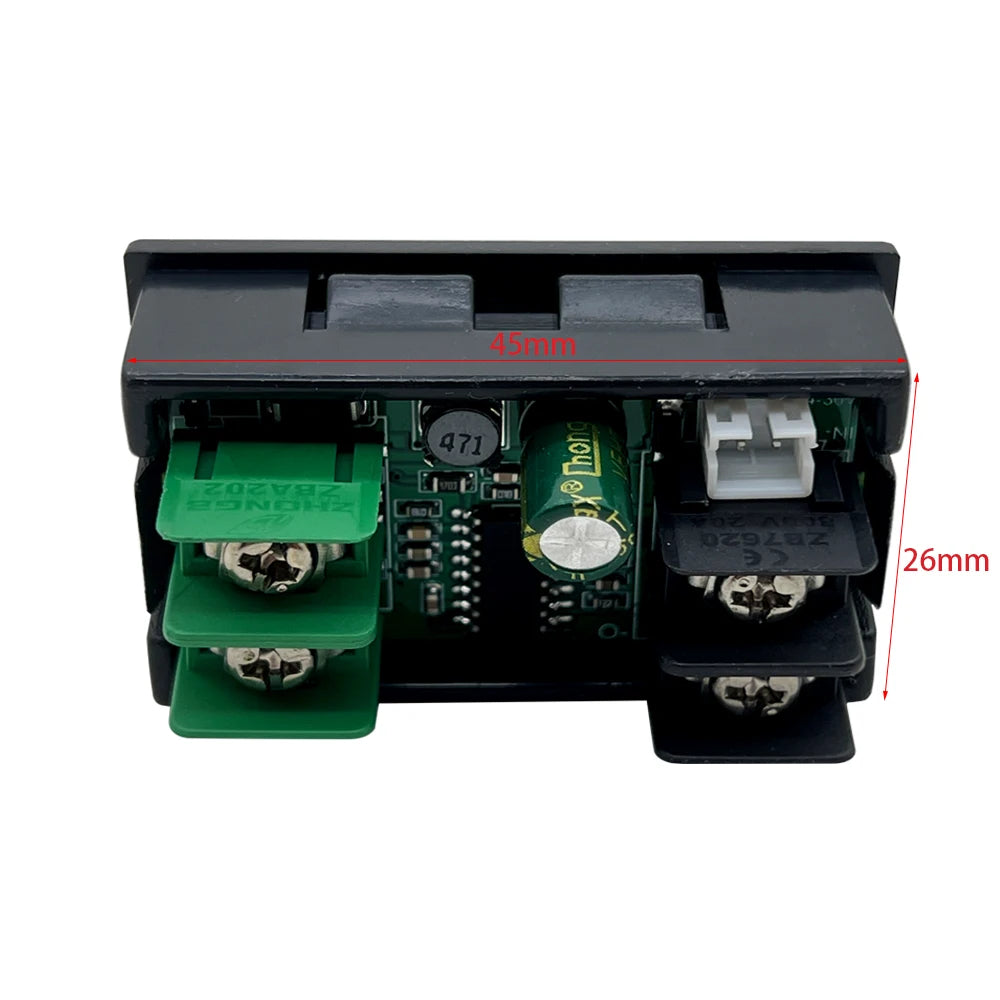

Installation hole: 45 × 26mm

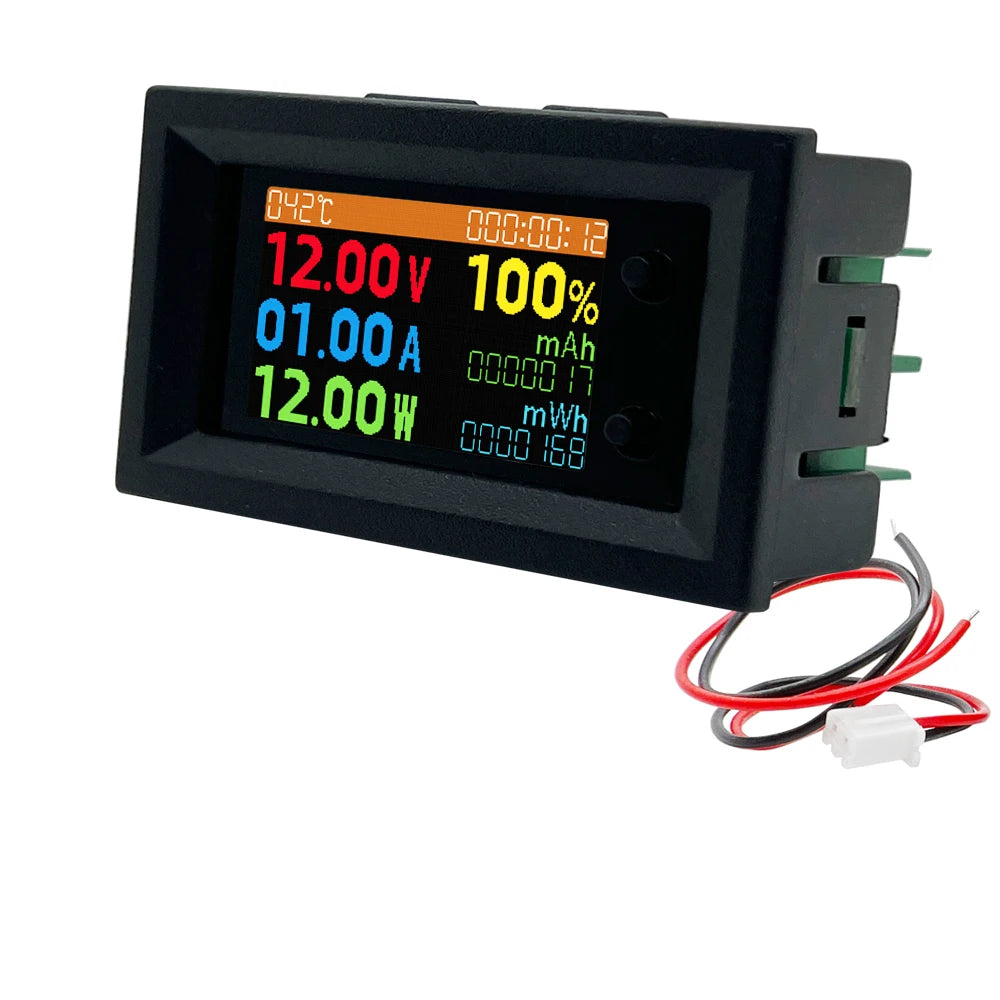

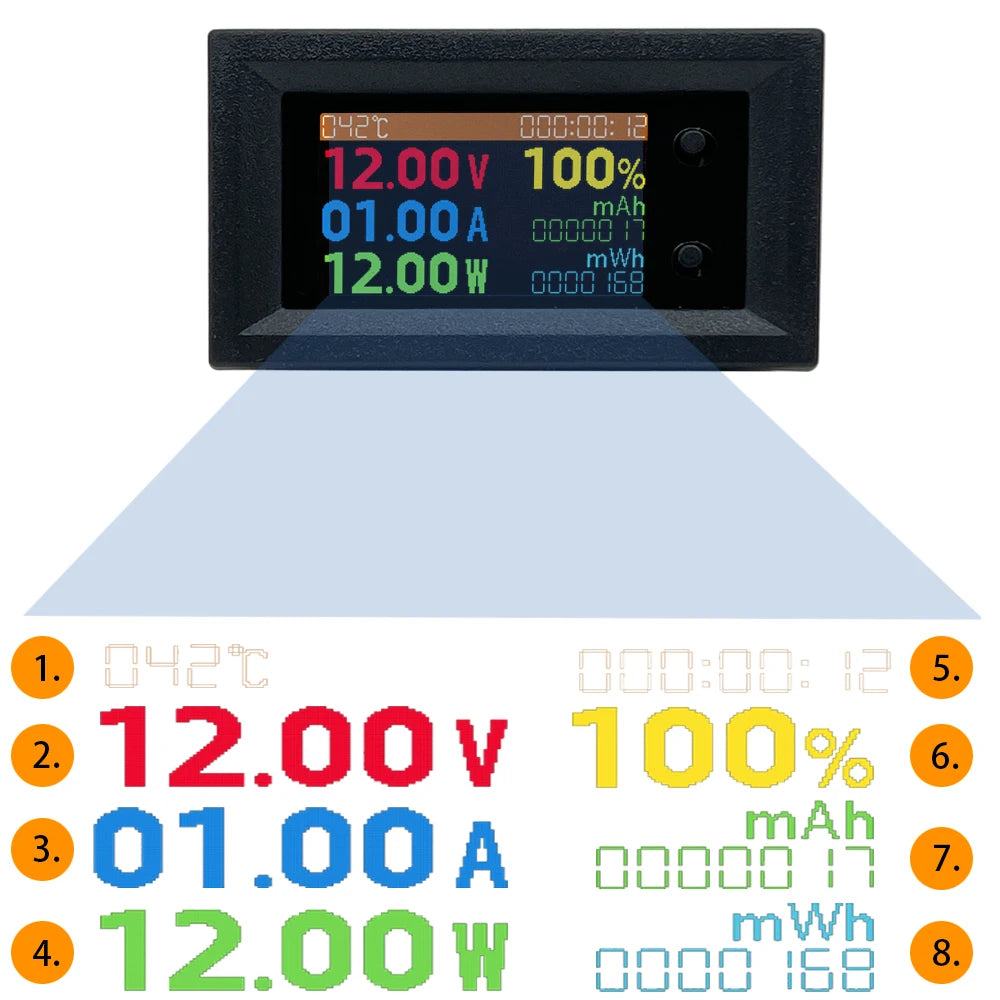

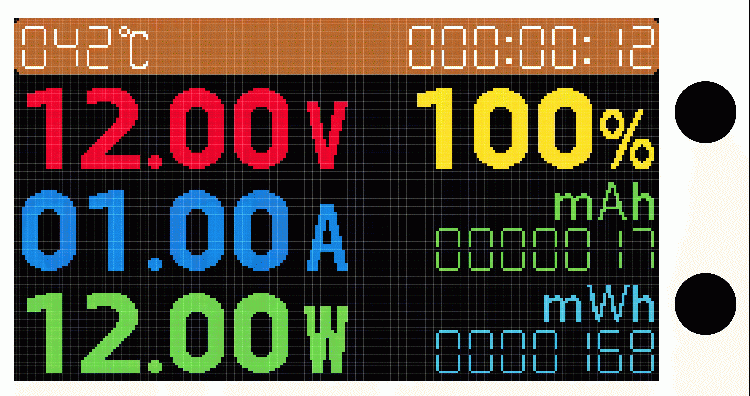

1. Instrument internal temperature
2. Real time voltage
3. Real time current
4. Real time current
5. Accumulated energy
6. Accumulated capacity
7. Voltage based reference battery, battery capacity
8. Accumulated running time

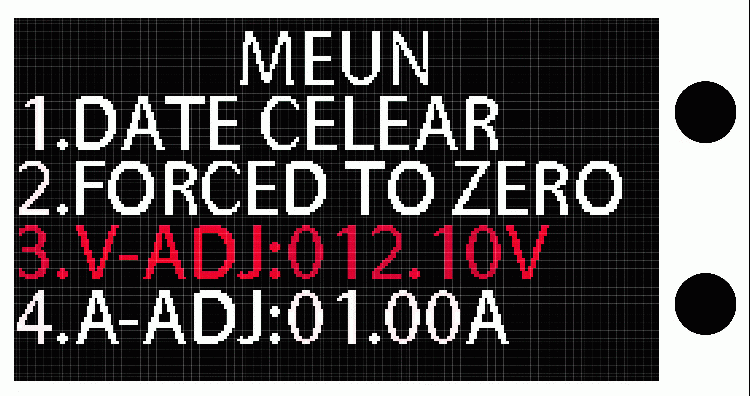

Menu bar introduction:
1. DATE CELEAR: Accumulated data reset
2. FORCED TO ZERO: No load forced reset
3. V-ADJ:... V: Display voltage fine adjustment (does not affect the actual voltage)
4. A-ADJ:... V: Display current fine adjustment (does not affect actual current)

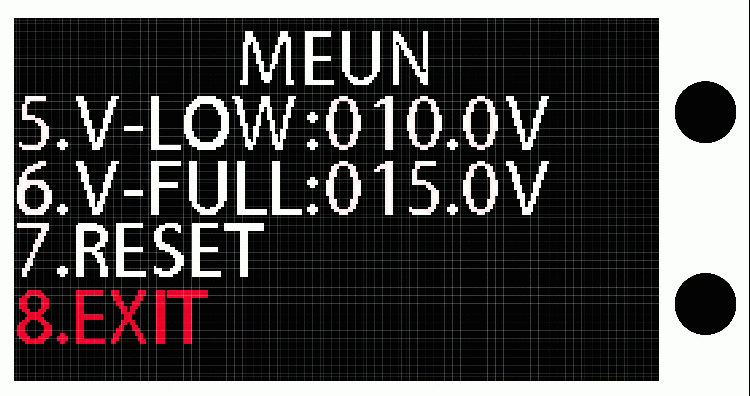

5. V-LOW:... V: Low battery voltage
6. V-FULL:... V: Battery full charge voltage
7. RESET: Reset
8. EXIT: Exit
Pay attention to electrical safety and avoid short circuits：

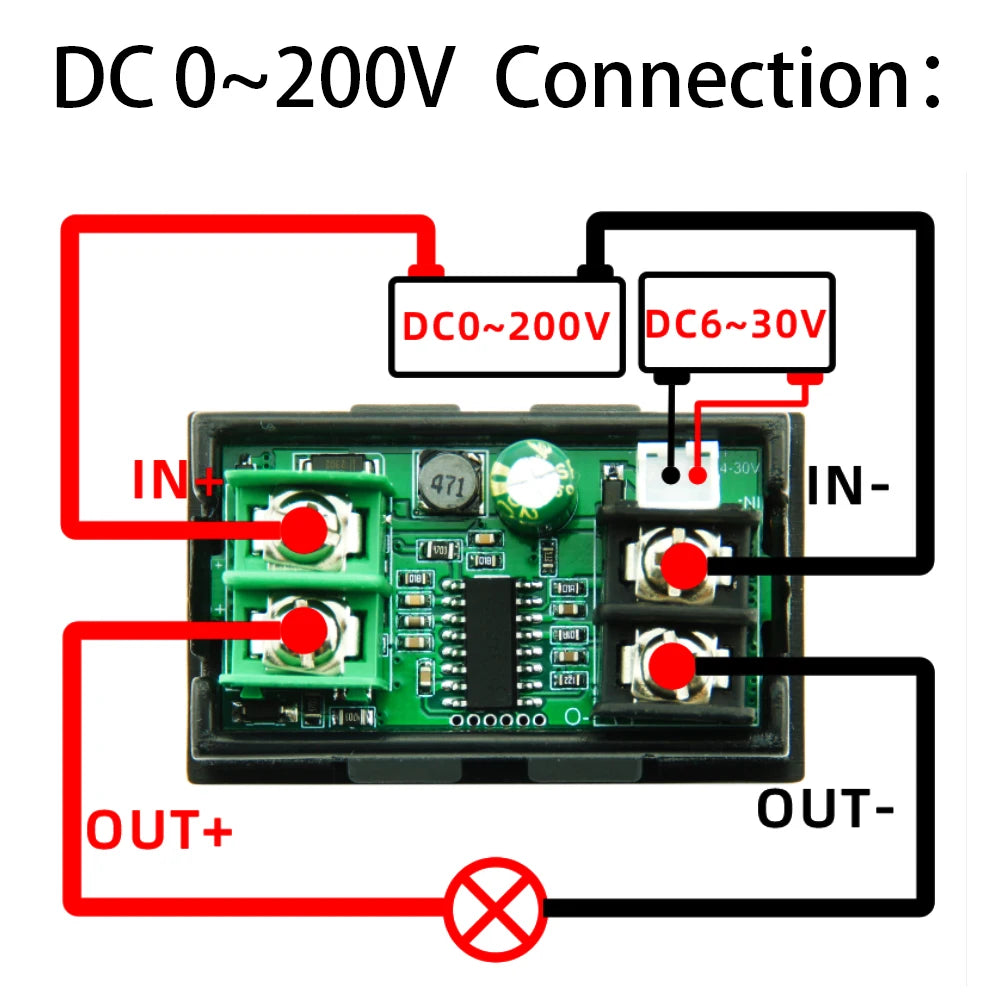

1. Independent power supply wiring method

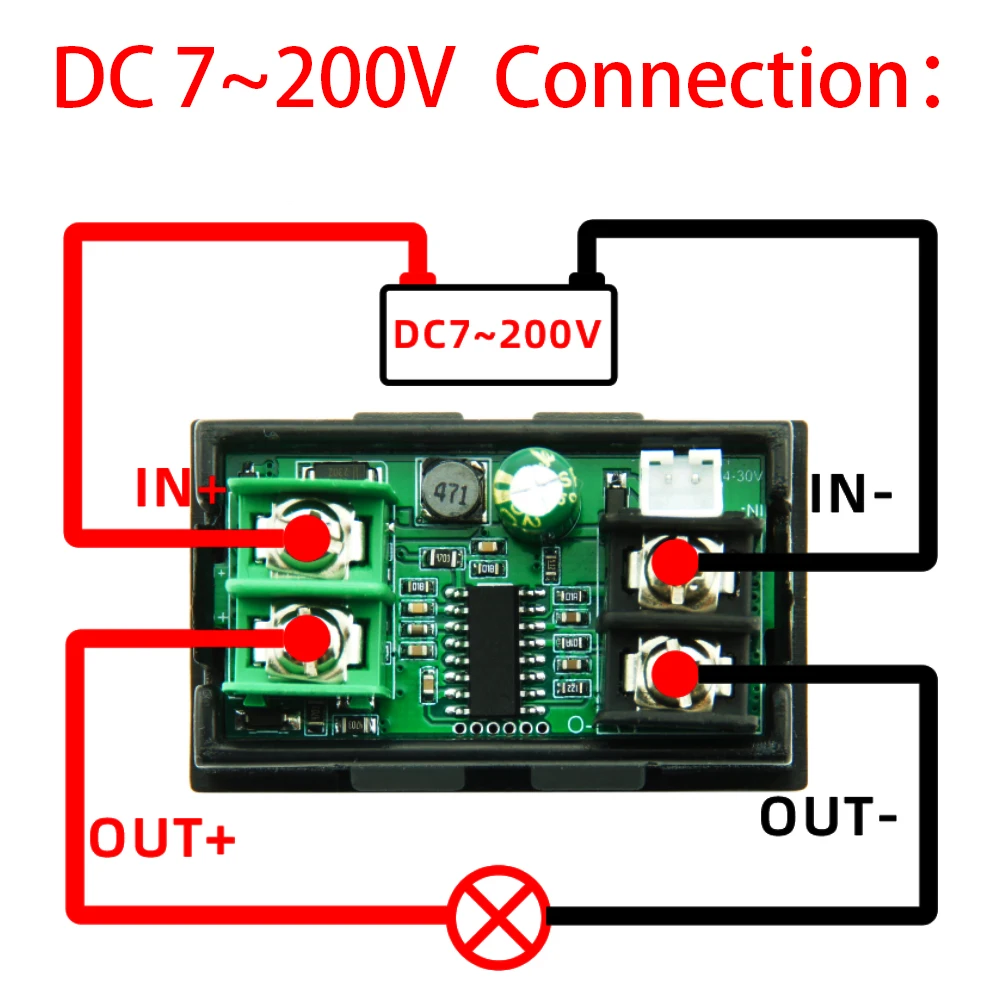

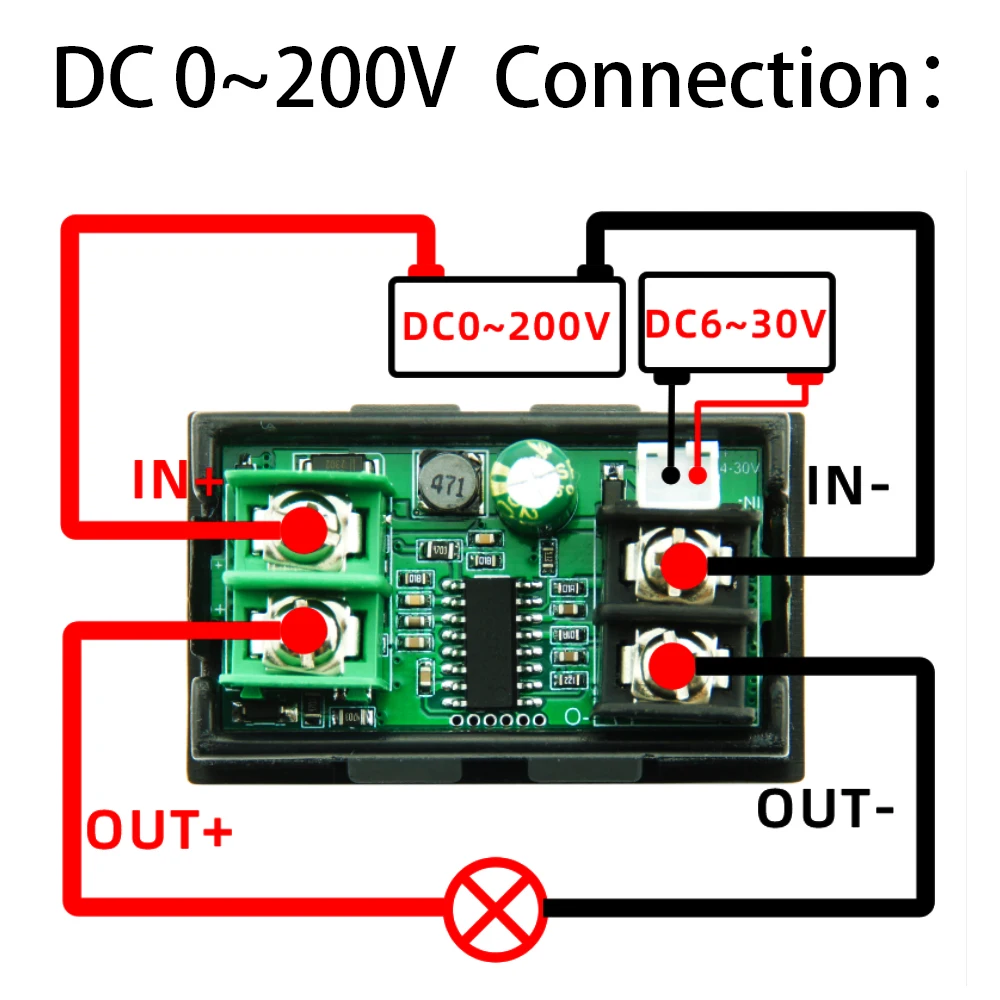

2. DC7~200V direct power supply test
Menu settings:
1. Enter the "Menu" and press and hold the "Up" button for 6 seconds to enter the menu
2. Click the "Up" button to switch menu options

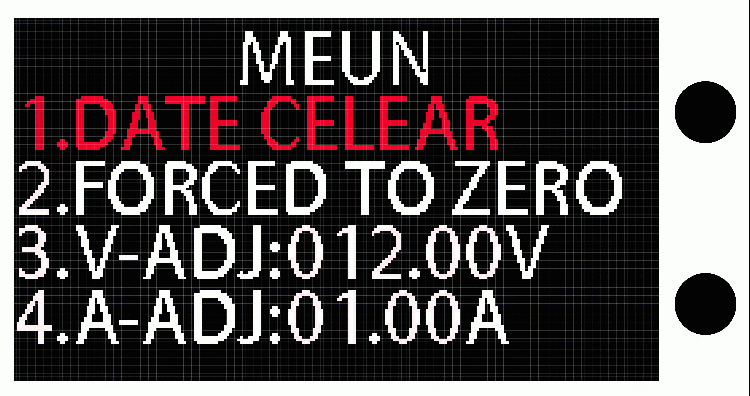

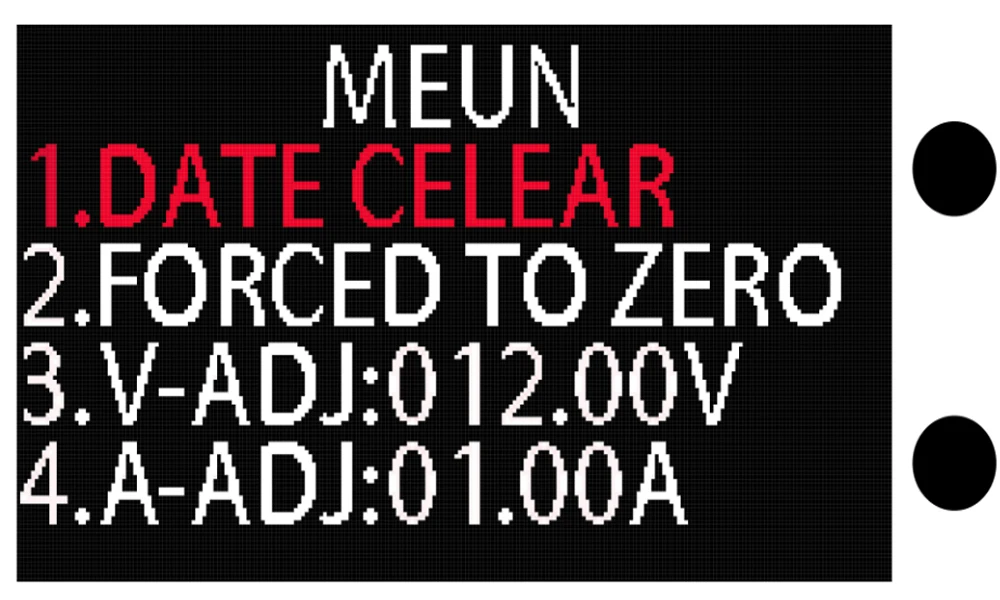

3. Accumulated Data Zeroing: Select "1. DATE CELEAR" and click the "Down" button to complete the zeroing process

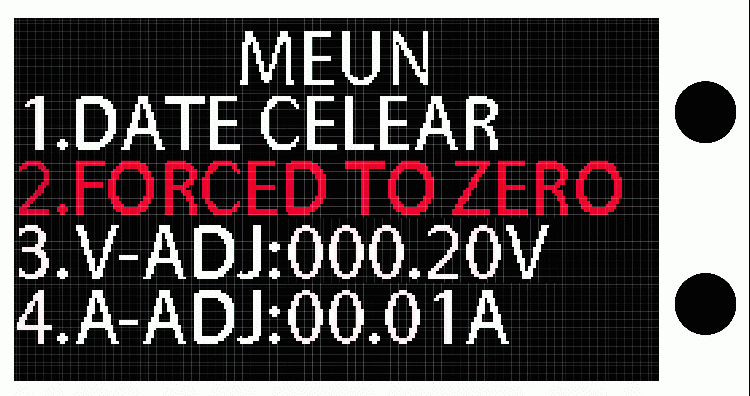

4. Zeroing with no load: When only using the XH-2P terminal for power supply, the voltage and current are not zero. By displaying fine adjustment or selecting "2. FOECED TO ZERO", click the "Down" button to complete the zeroing. If the voltage is displayed normally and forced to zero by mistake, simply reset.
5. Display voltage fine adjustment: Select "3. V-ADJ:" and click the "Down" button to increase the displayed voltage value
Long press the "up" button to continuously reduce the displayed voltage value

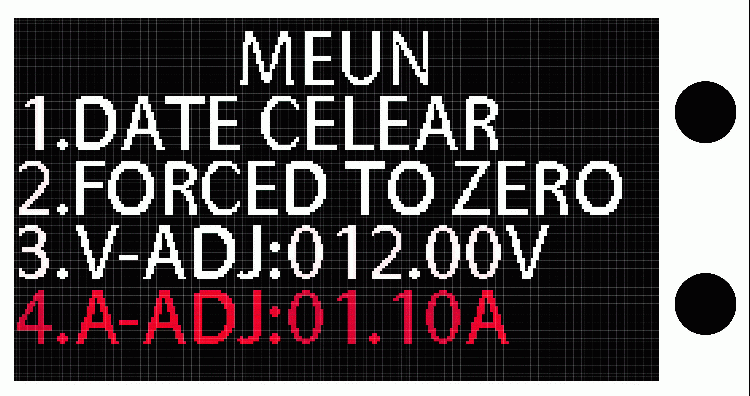

6. Display current fine adjustment: Select "4. A-ADJ:" and click the "Down" button to increase the displayed current value
Long press and hold the "up" button to continuously reduce the current display value

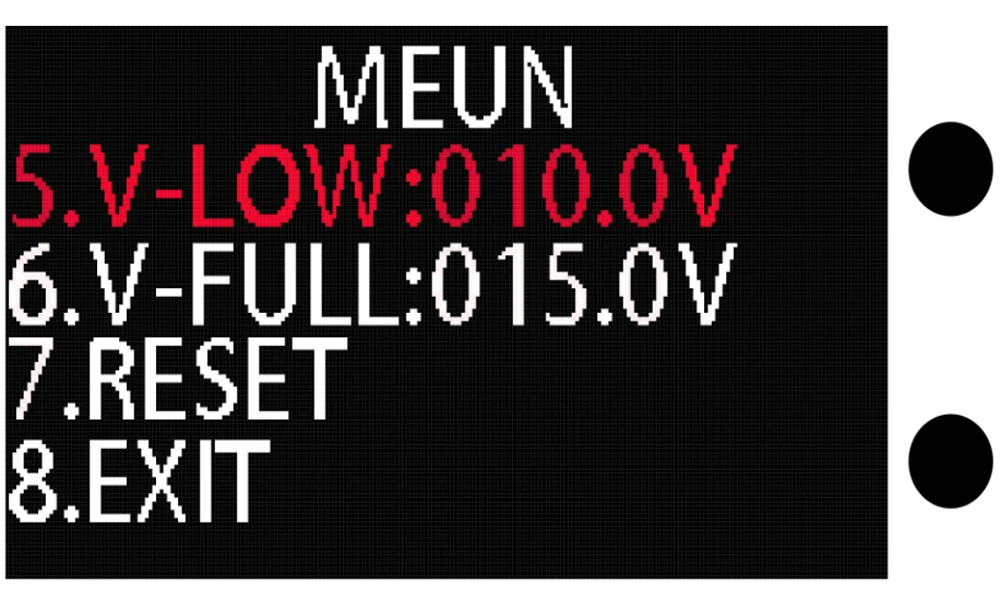

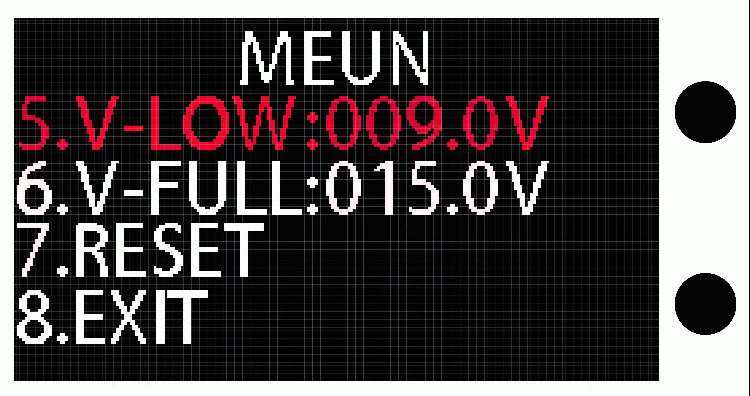

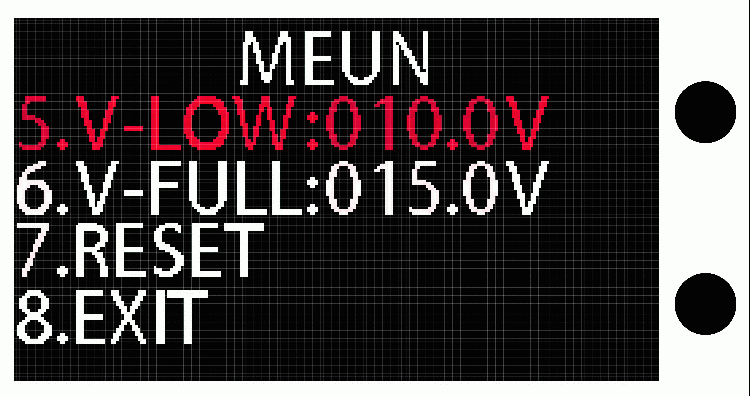

7. Set battery low voltage: Select "5. V-LOW:" and click the "Down" button to increase the voltage parameter
Long press the "up" button to continuously reduce the voltage parameters

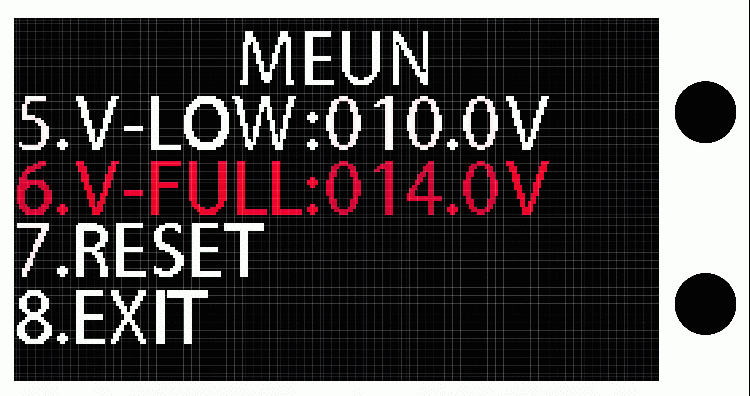

8. Set the battery full charge voltage: Select "6. VFULL:" and click the "Down" button to increase the voltage parameter
Long press the "up" button to continuously reduce the voltage parameters

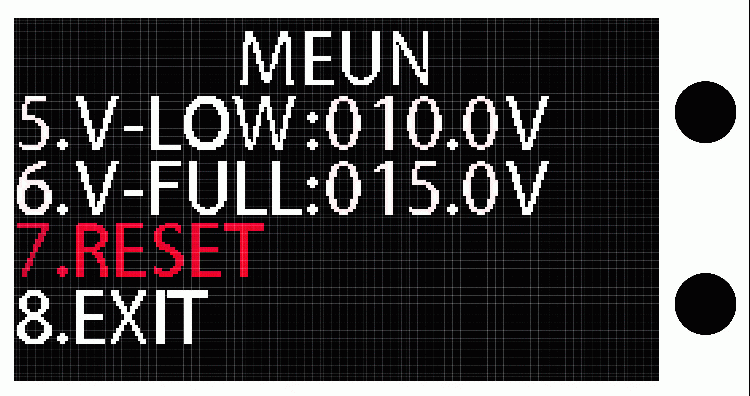

9 Reset: select "7. RESET" and click "Down" to confirm the reset
10. Exit menu: Select "8. EXIT" and click the "Down" button to confirm exit
